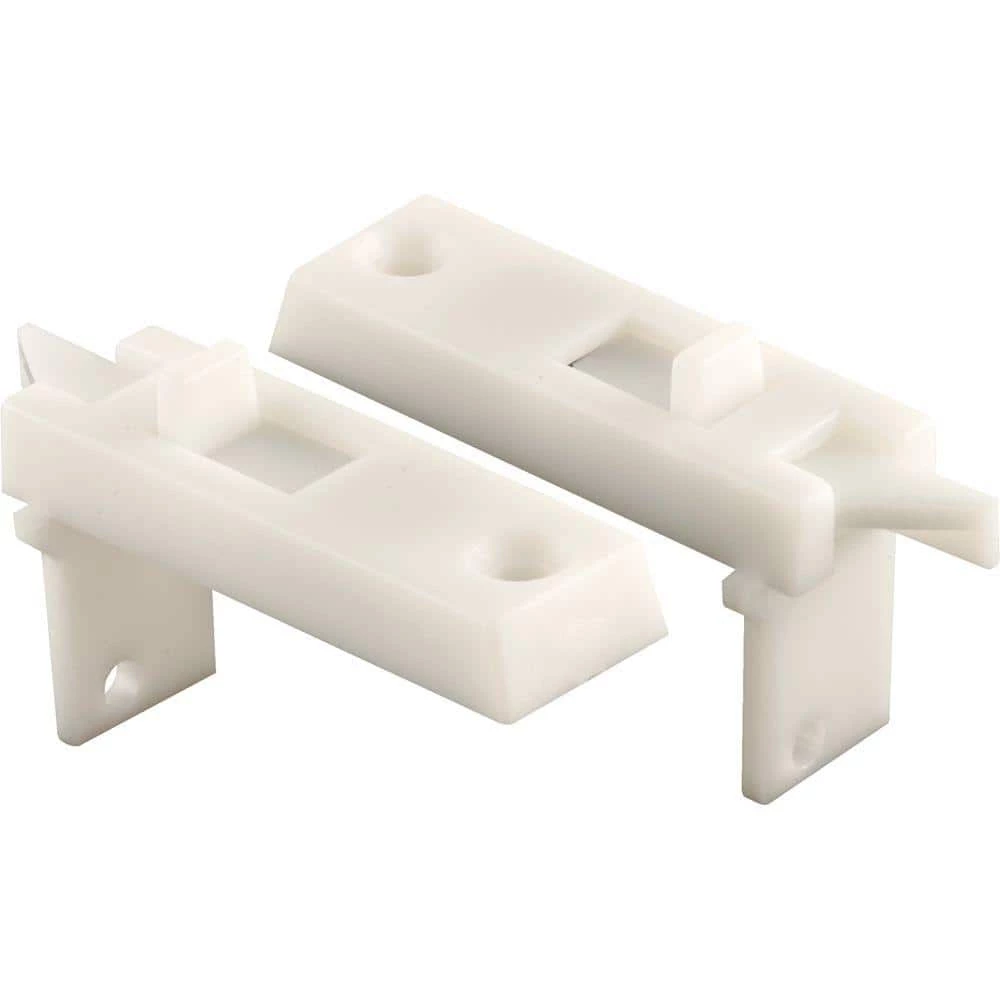

This is a tilt latch, spring loaded wrap around design. Used on single or double hung aluminum windows, and attaches to the top rail and stile. It is injected molded white plastic, with fasteners. Made for tilt out windows. Dimensions are 2-1/4 in. in length, 3/4 in. width. The mounting holes are 1-11/16 in. holes on center, with a 15/16 in. leg drop down, and 3/8 in. backset. Used on BetterBilt windows, 1 left hand, 1 right hand per package.
- These spring-loaded tilt latch replacement parts feature a unique wrap-around design that attaches to the top rail and side stile. Each package includes one right hand & one left hand tilt latch with fasteners
- Use this tilt latch to replace old or broken window tilt latches to maintain safety and security in your home
- Installation is quick and easy and the tilt latch can be used on aluminum, single and double hung vertical sliding sash panels that are designed to tilt-in and down from the top, for cleaning purposes
- Made of white plastic, this spring-loaded tilt latch is strong, durable and made to last
- Unique wrap-around design attaches to top rail and stile
- Mounting hardware included
- A Phillips head screwdriver is required for Installation

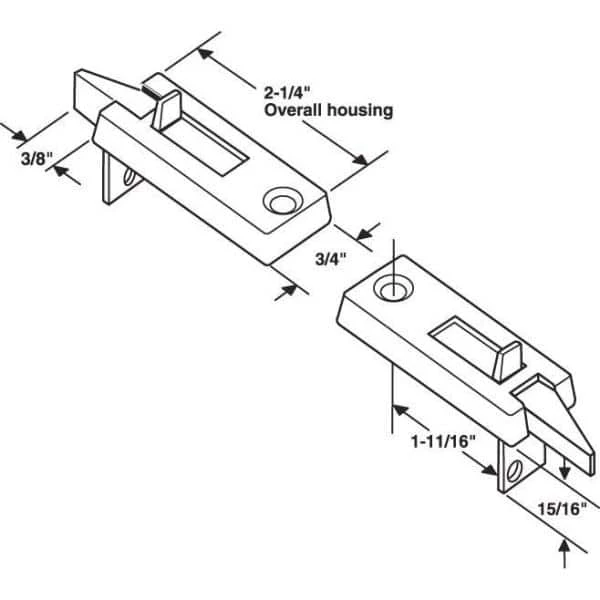

- For further dimensional information, please see the Line Drawing
