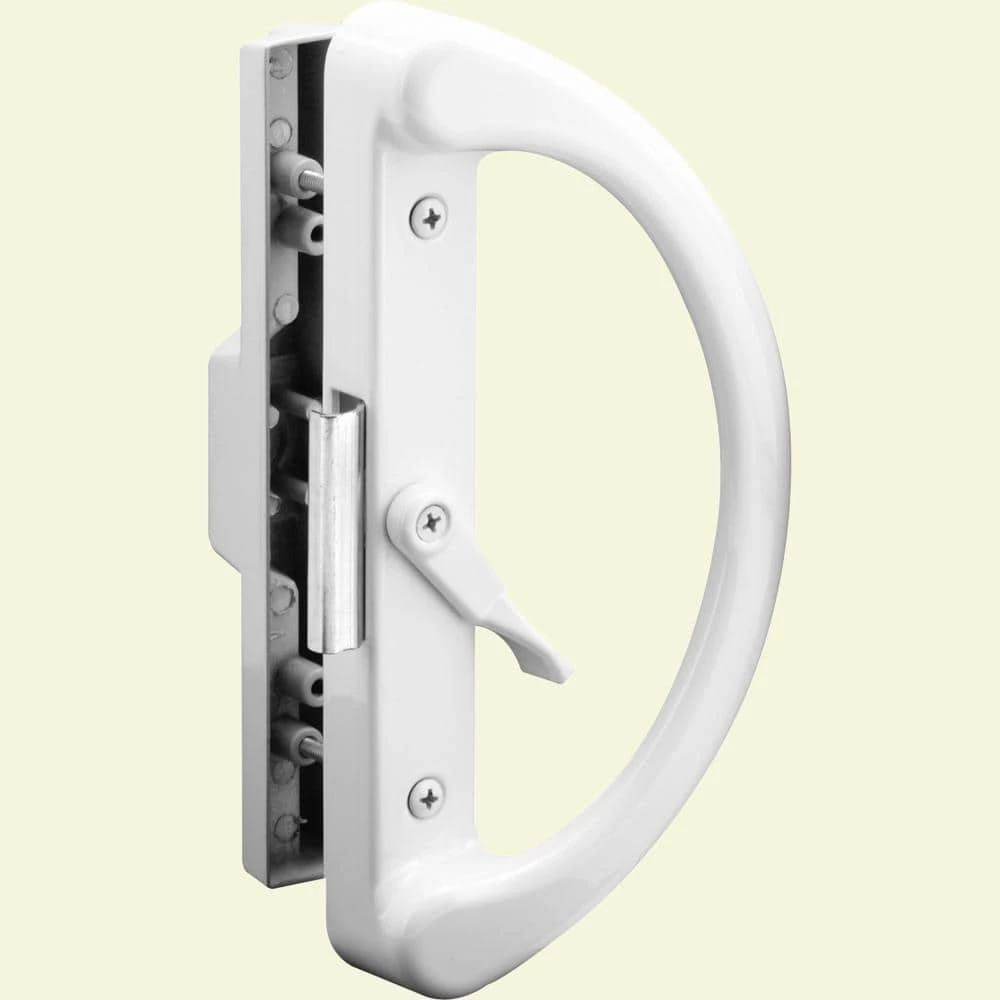

This is an upgrade for the typical clamp style patio door handle in style and security. This clamp style latch is designed to meet or exceed an 850 lb. forced entry pull test, making it very secure. The clamp latches onto an extrusion (astragal) on the jamb. Inside handle is white diecast and has a projection of 1-7/8 in. from the door frame. Outside handle is white diecast. There are 2 interchangeable clamps to fit most doors. Mounting holes are 4-15/16 in. on center. Non-handed design makes it useable on right or left handed doors. To make this a keyed handle set use Prime-Line part E 2000.
- This patio door handle set is used to replace damaged or missing surface mount, clamp style handle sets on sliding glass doors
- Mounting holes 4-15/16 in. on center
- Two interchangeable clamps included for different spacing
- Diecast construction with a white finish
- Use Prime-Line part E 2000 to make this handleset keyed
- All the necessary mounting hardware is included for a quick and easy installation
- A Phillips head screwdriver is required for installation

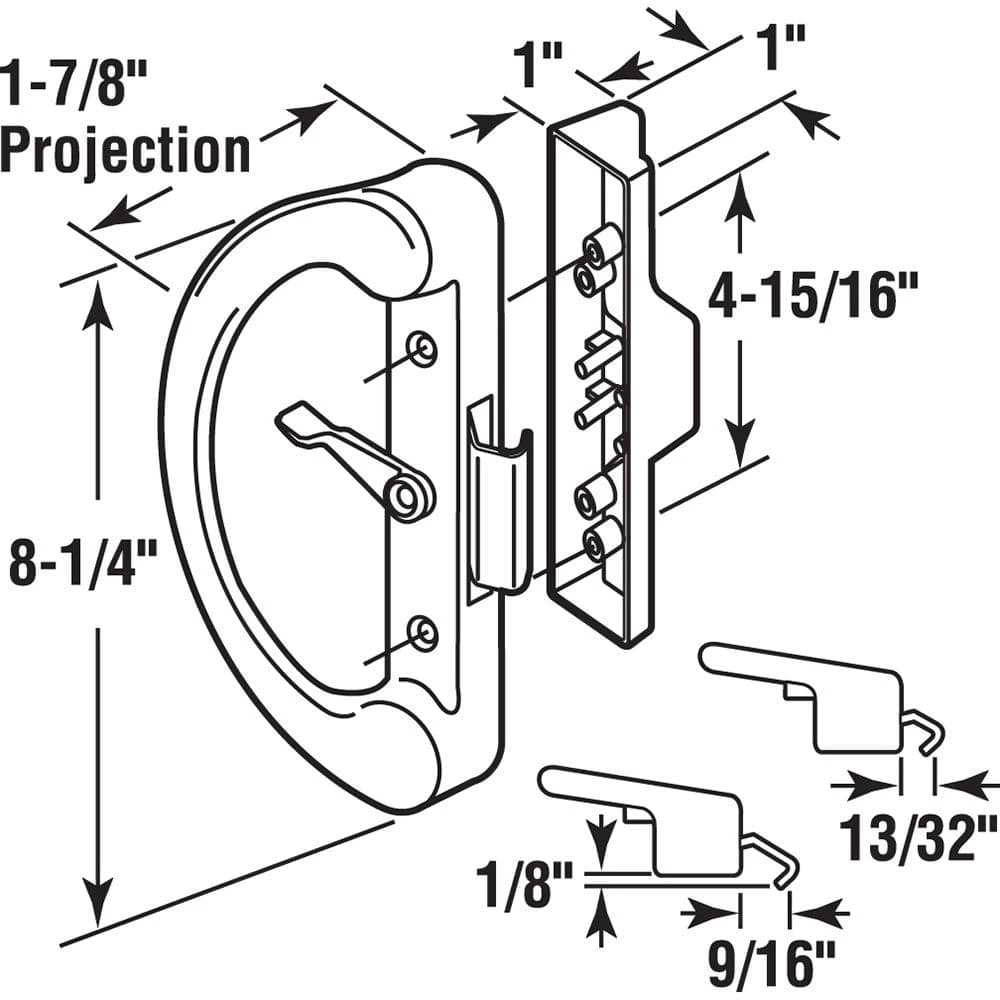

- For further dimensional information, please see the line drawing
