Sale!

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 2

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 3

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 4

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 5

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 6

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 - Image 7

Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍

Name: Discount 💯 Prime-Line Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 👍 | Hot Sale Prime-Line Shop
SKU: Prime-Line 100553258
Price: 9.54 USD
Availability: InStock

Original price was: $15.14.Current price is: $9.54.

Adjustable hook projection
Steel construction for long lasting durability
Can be installed in minutes with a few simple tools

SKU: Prime-Line 100553258 Categories: Door Hardware, Door Reinforcement, Door Security Tags: Commercial,Residential, Door Frame Reinforcer, Metallics, Prime-Line, Yes

Fast, friendly, always here to help.
Shop with confidence, we guarantee quality.
Unbeatable quality, unbeatable prices.
Quality products for every lifestyle.

Keep your sliding patio door secure with this Rounded Faceplate Mortise Lock. The steel housing and hook have a round end faceplate with mounting holes at 4-5/8 in. and 3-11/16 in. on the center. The keyway is at 45 degrees with the hook fully extended. For use on wood and vinyl patio doors.

Used to replace damaged or missing mortise locks in sliding patio doors constructed of both wood and vinyl
1/2 in. wide x 1-1/8 in. deep x 3-3/16 in. faceplate height with 4-5/8 in. mounting hole center spacing and 45 degree keyway
Features square corner housing with rounded faceplate ends
Steel construction
Round end faceplate with spring-loaded adjustable hook
Mortise style installation
Used by a variety of patio door manufactures

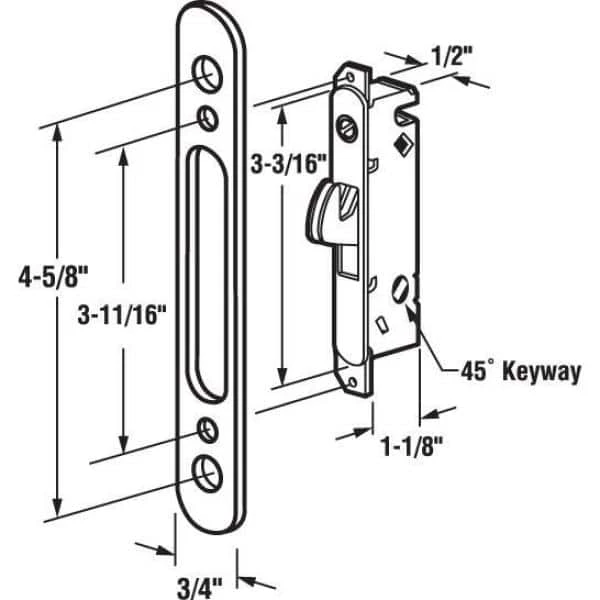

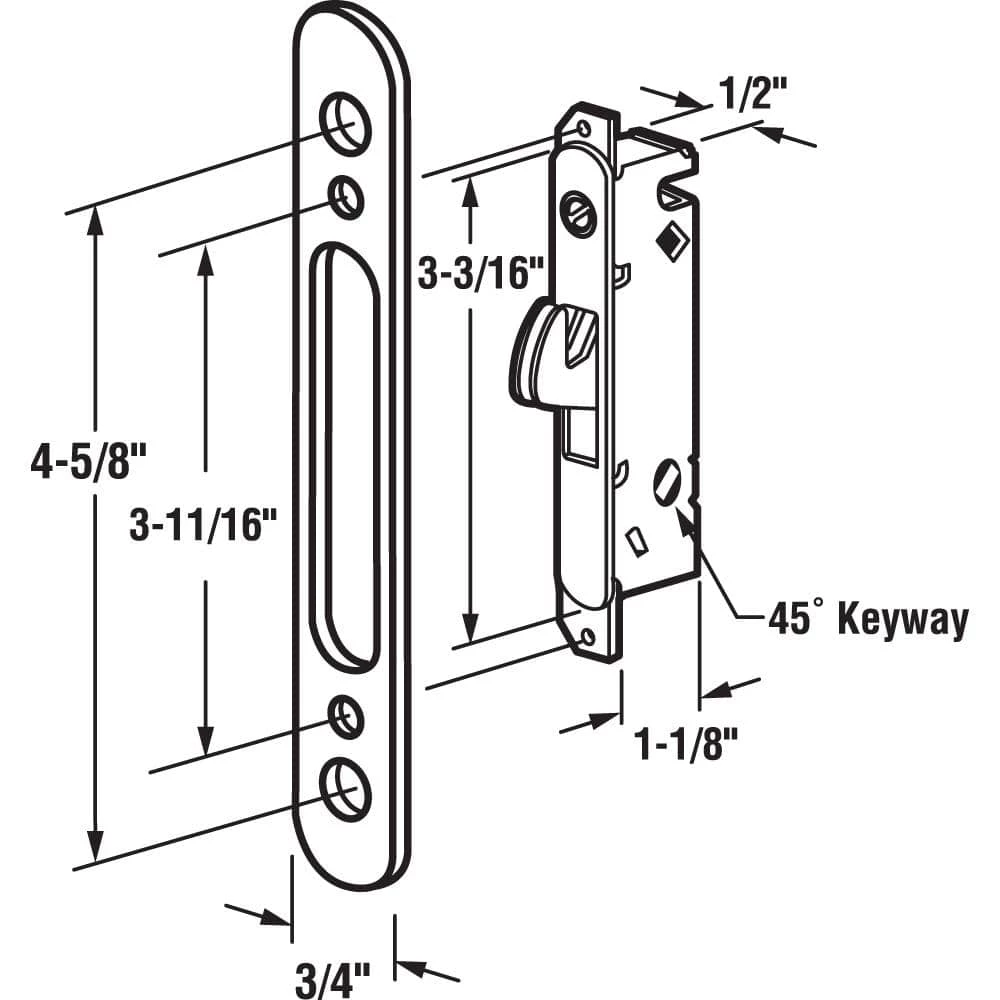

For further dimensional information, please see the line drawing

Color Family	Metallics
Commercial/Residential	Residential
Mounting Hardware Included	Yes
Product Weight (lb.)	0.375 lb
Returnable	30-Day
Safety & Security Product Type	Door Frame Reinforcer
Manufacturer Warranty	Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Product Depth (in.)	1.125 in
Product Height (in.)	9.438 in
Product Width (in.)	3.813 in
