Top 10 🥰 Prime-Line Mortise Lock, 3-11/16 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded 🥰
Original price was: $11.95.$8.13Current price is: $8.13.
Adjustable hook projection
Steel construction for long lasting durability
Can be installed in minutes with a few simple tools
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.

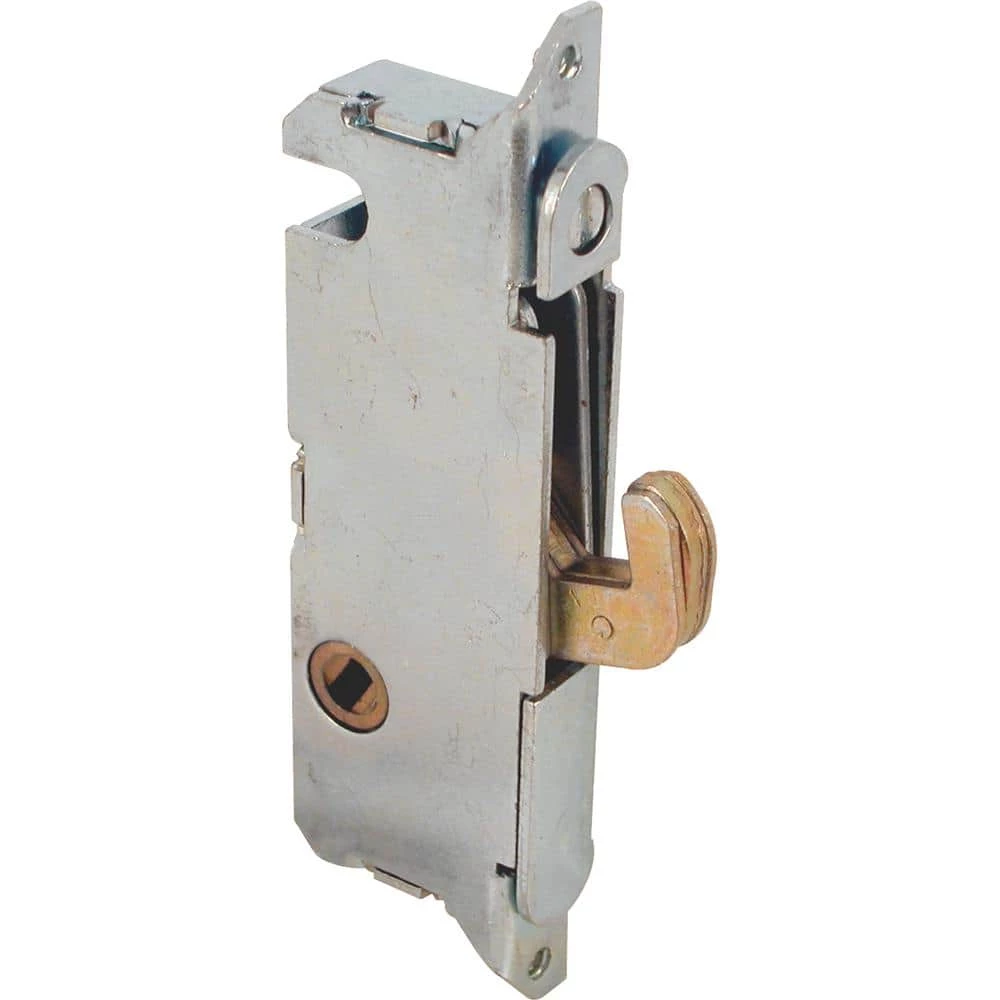

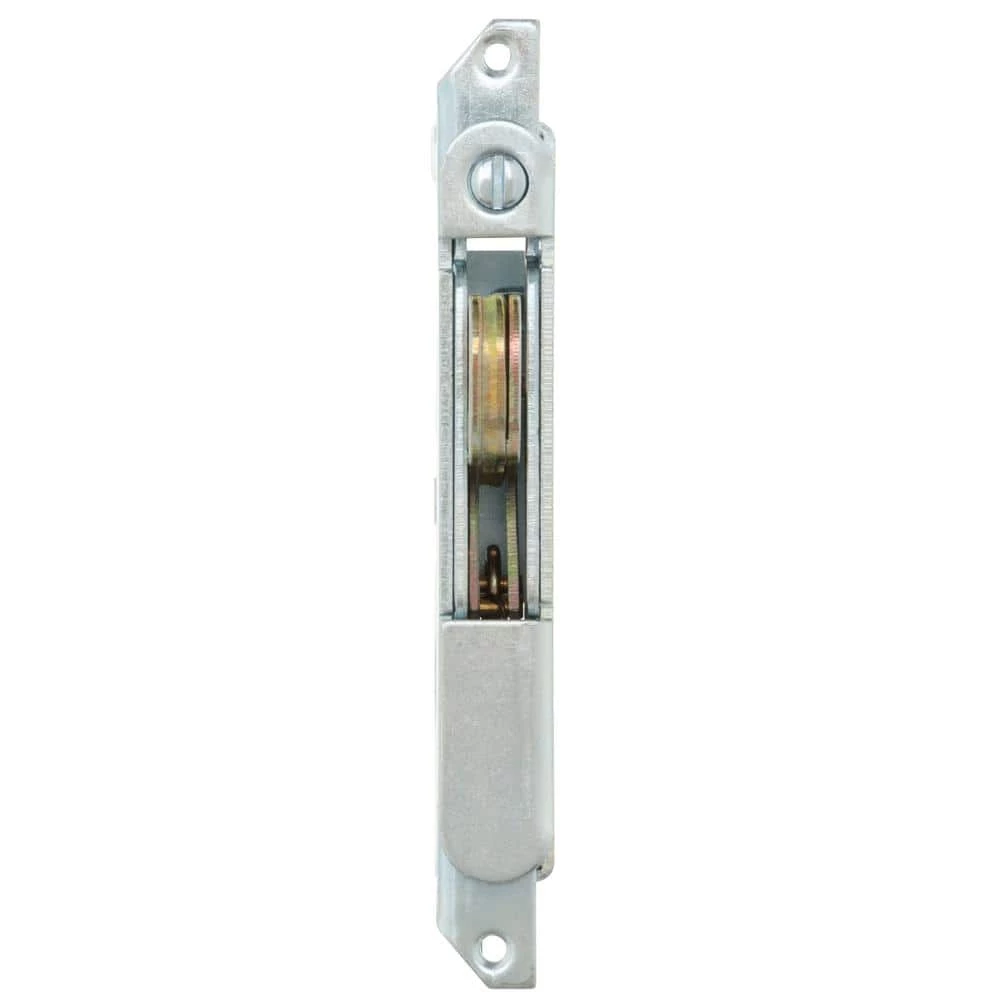

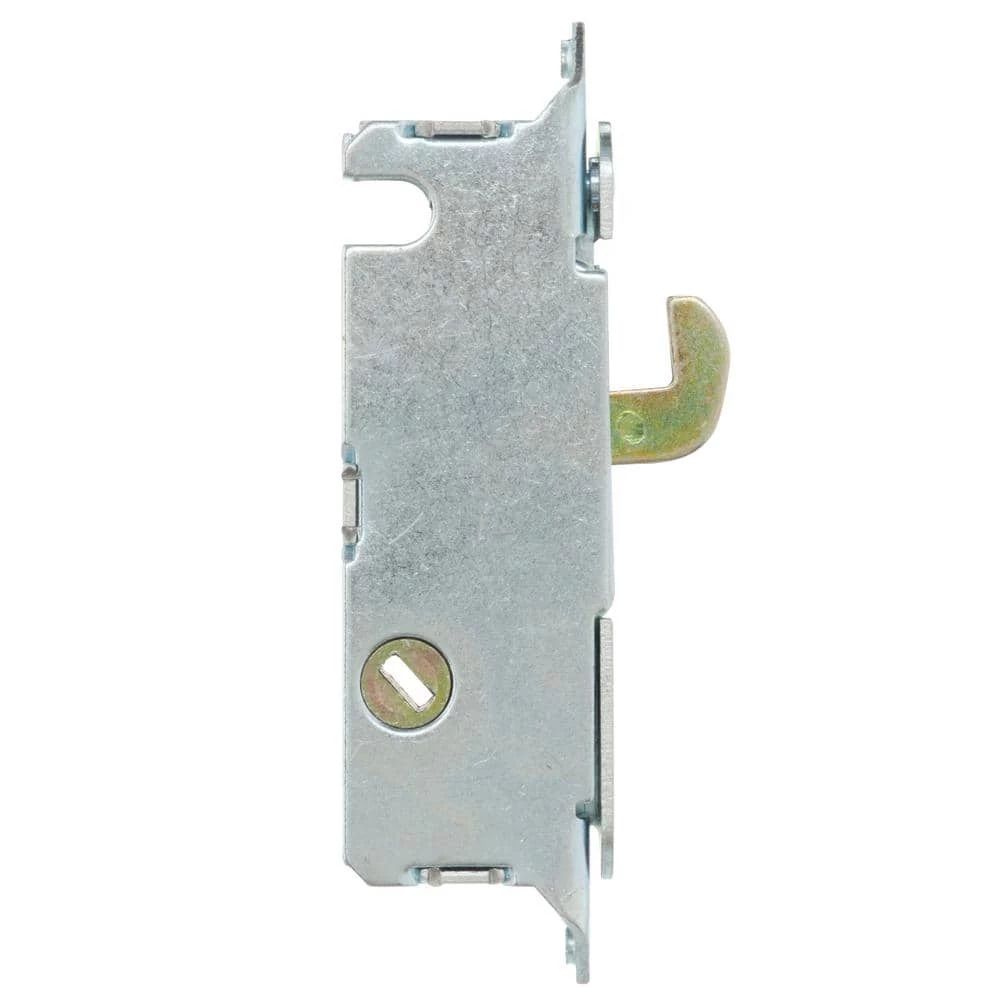

This is a spring-loaded steel housing hook lock featuring a round-end faceplate. This Mortise lock has mounting holes that are 3-11/16 in. on center, with a 45 degree angle keyway.
- Used to replace damaged or missing mortise locks in sliding patio doors by W&F and many other manufacturers
- 1/2 in. wide x 1-1/8 in. deep x 3-3/16 in. faceplate height with 3-11/16 in. mounting hole center spacing and 45 degree keyway
- Features square corner housing with rounded faceplate ends
- Steel construction for increased durability
- Spring-loaded adjustable hook lock
- Used on a 45 degree keyway
- A Phillips head screwdriver is required for installation

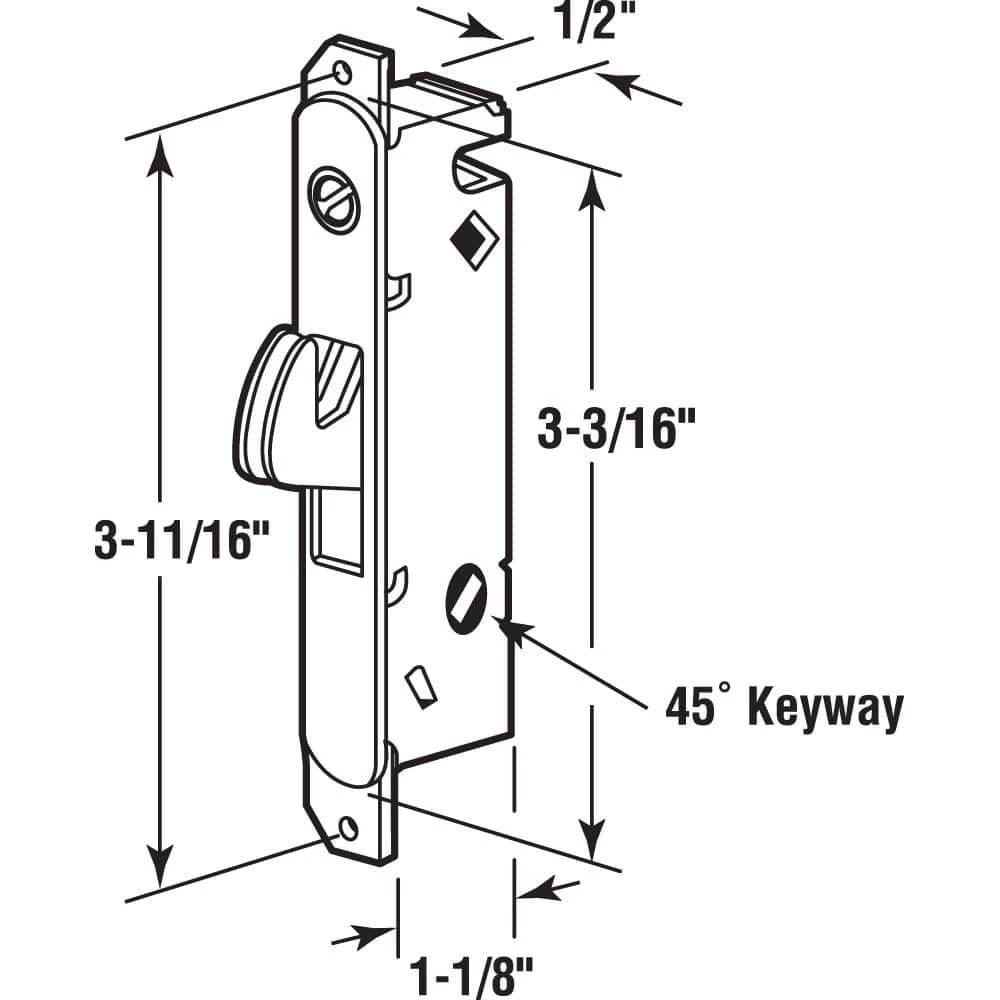

- For further dimensional information, please see the line drawing
| Builders Hardware Product Type | Bypass Door Hardware |
|---|---|
| Finish | Stainless Steel |
| Hardware Color Family | Silver |
| Hardware Finish Family | Silver |
| Material | Metal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Product Depth (in.) | 1.125 |
| Product Height (in.) | 3.688 |
| Product Width (in.) | 0.5 |
