Promo 🎁 Prime-Line Garage Door Torsion Spring, 0.243 x 1-3/4 in. x 32 in., Red, Right Hand Wind 🛒

This torsion spring is constructed of steel and comes with a red color code on the winding cone end. It is a right wind spring, and its left wind partner is model number GD 12229. At the opposite end of the winding code, a stationary cone is also included with this spring, both cones constructed of diecast metal. This torsion spring provides lifting force for heavy garage doors and must be selected by the spring’s dimensions, rather than the door’s weight. This torsion spring is a regular duty spring with an estimated lifetime rating of 10,000 cycles. These torsion springs are used to repair damaged or worn garage door springs that are found directly above the door and mounted to the header. Note: If attempting to replace the torsion springs yourself, it is important that the removal or adjustment of torsion springs is not attempted with any other tool other than Prime-Line’s item number GD-52238. Failure to utilize Prime-Line’s item number GD-52238 for the replacement of these springs may result in severe personal injury. These winding rods are used to wind and unwind the tension on torsion springs and they are the only tools recommended for this purpose.

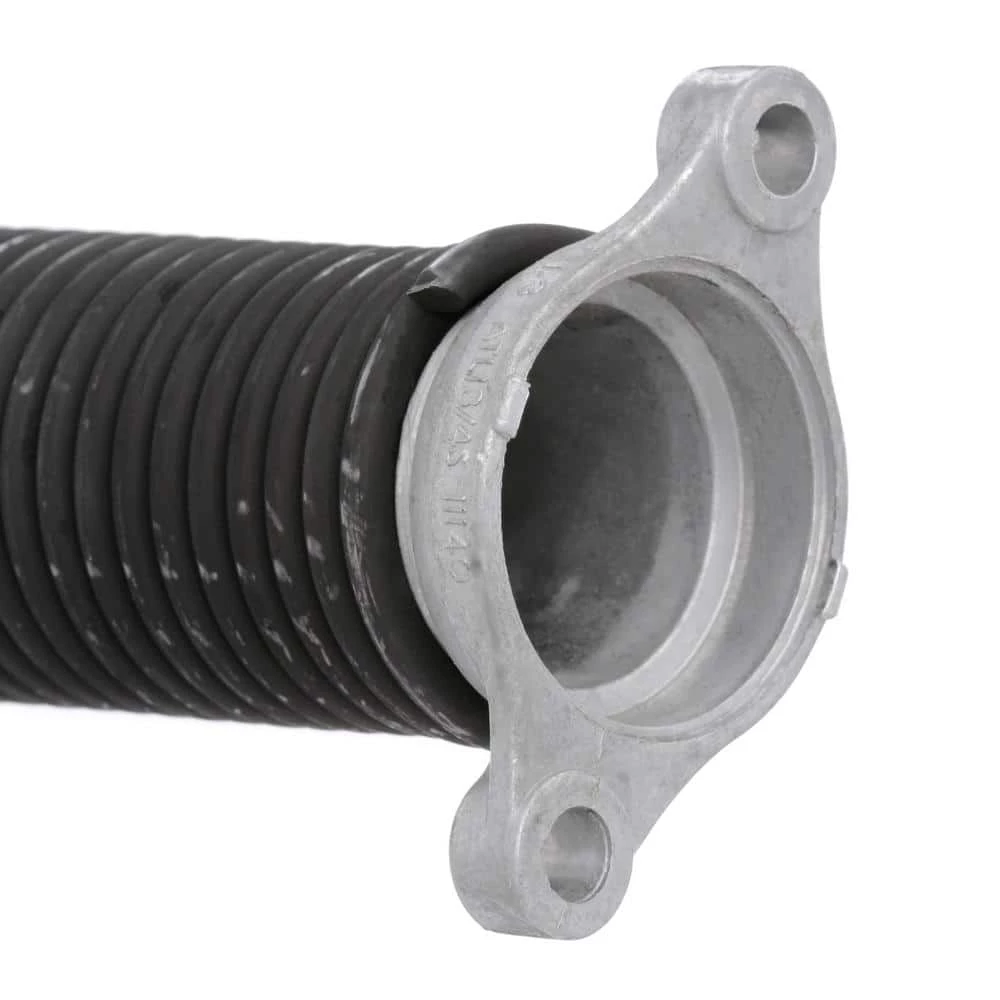

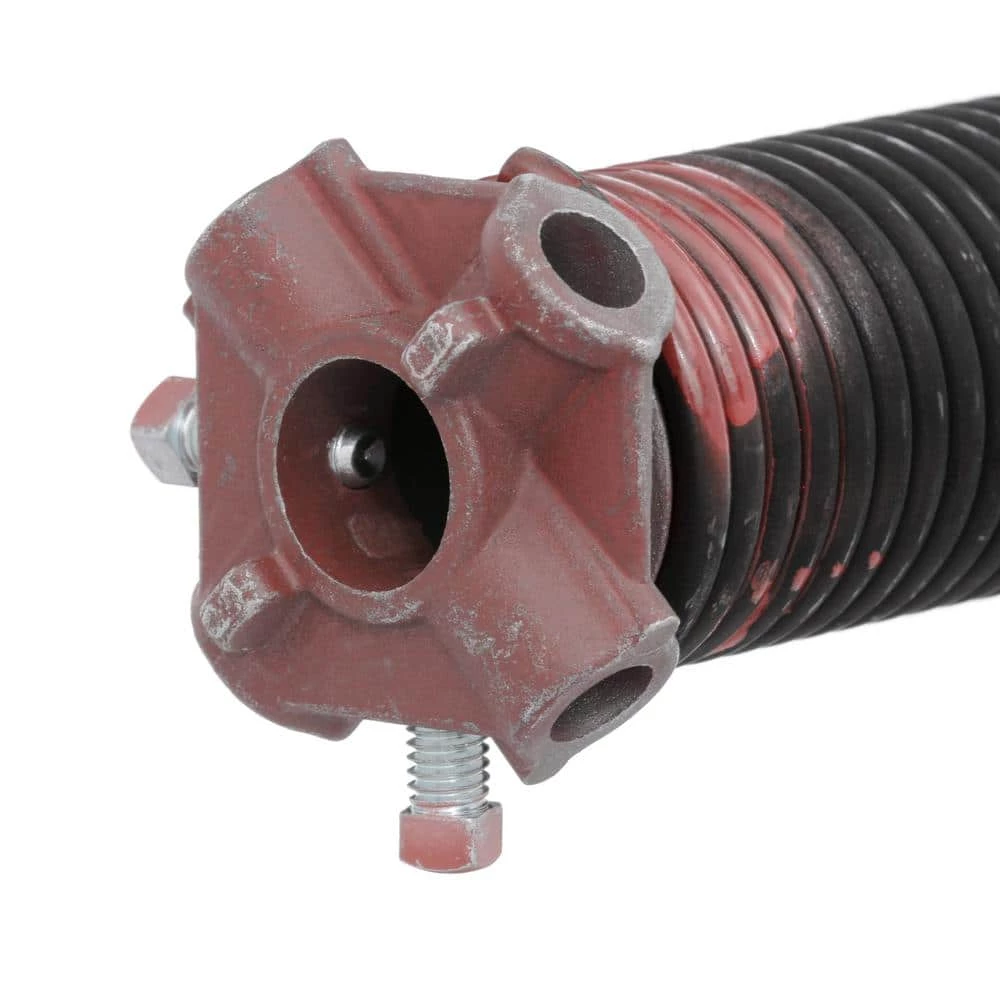

• Spring includes stationary and winding cone
• 0.243 in. wire size x 1-3/4 in. inside diameter x 32 in. overall length
• When dual spring installations are involved, it is important to correctly install both the LEFT and RIGHT WIND SPRINGS during the same job
• Spring includes stationary and winding cones. Replacement requires use/purchase of Prime-Line part GD-52238 and a clear understanding of wire size and handing
• Right hand wind springs are mounted to the left of center (as viewed from the inside the garage looking out)
• Right hand wind 1-3/4 in. inside diameter
• Matching right wind torsion spring is Prime-Line part GD 12229

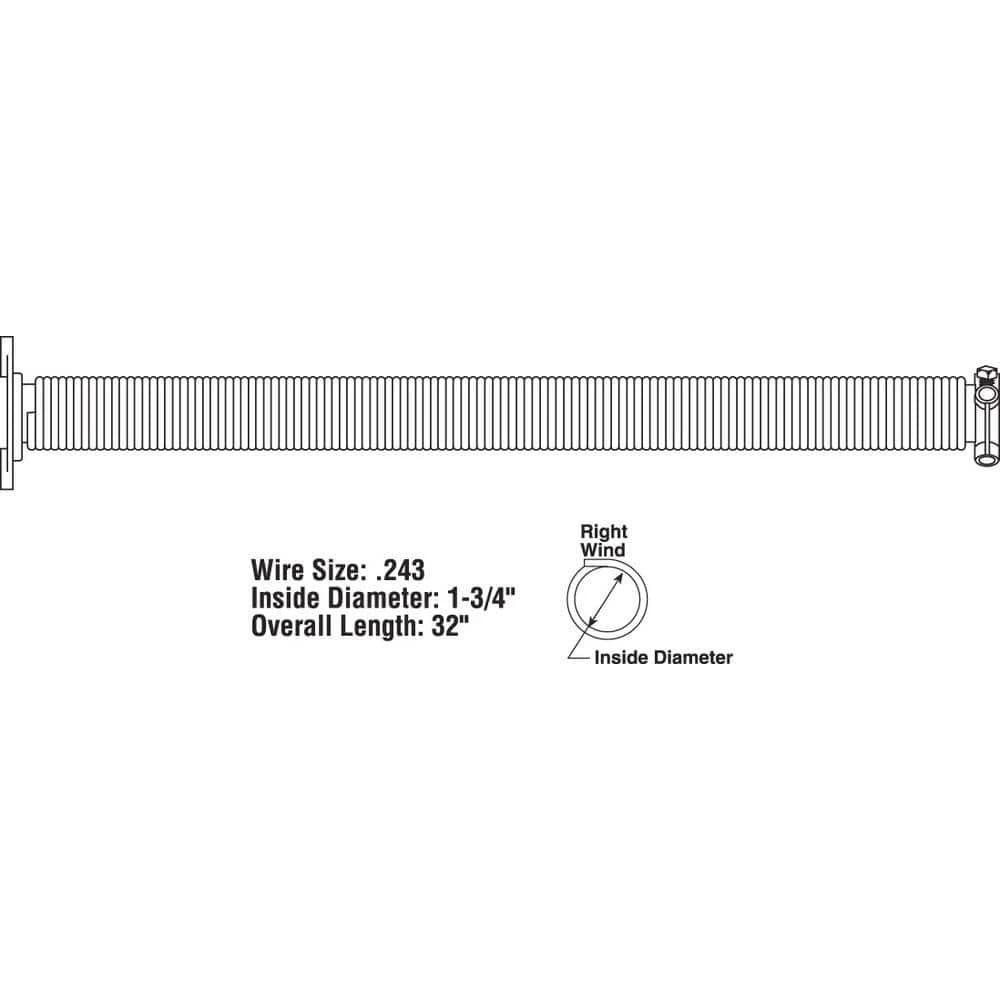

• For further dimensional information, please see the line drawing
