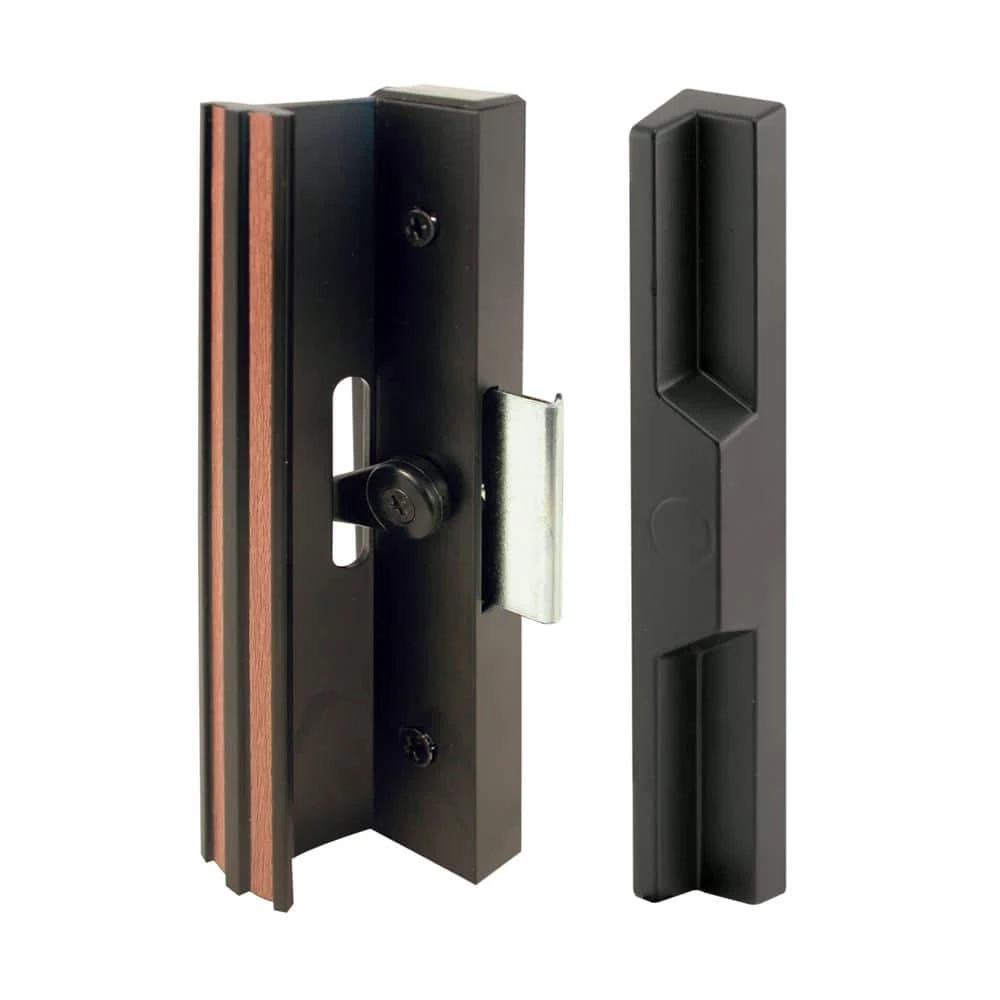

This black patio door handle is a surface with clamp latch style. Often found on older style patio doors, it is mounted on the door’s inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 in. handle height extruded aluminum inside handle. The clamp has a 1/4 in. profile and 1/2 in. projection when in locked position. The outside handle is a black diecast non-keyed handle. To key this unit order the Prime-Line part E 2000.
- Used by a variety of sliding patio door manufacturers
- Surface mount, clamp style sliding patio door handles
- 4-15/16 in. on center hole mounting
- Extruded aluminum painted black
- Not a keyed unit, use Prime-Line part E 2000 to make a keyed unit
- All the necessary mounting hardware is included for a quick and easy installation
- A Phillips head screwdriver is required for installation

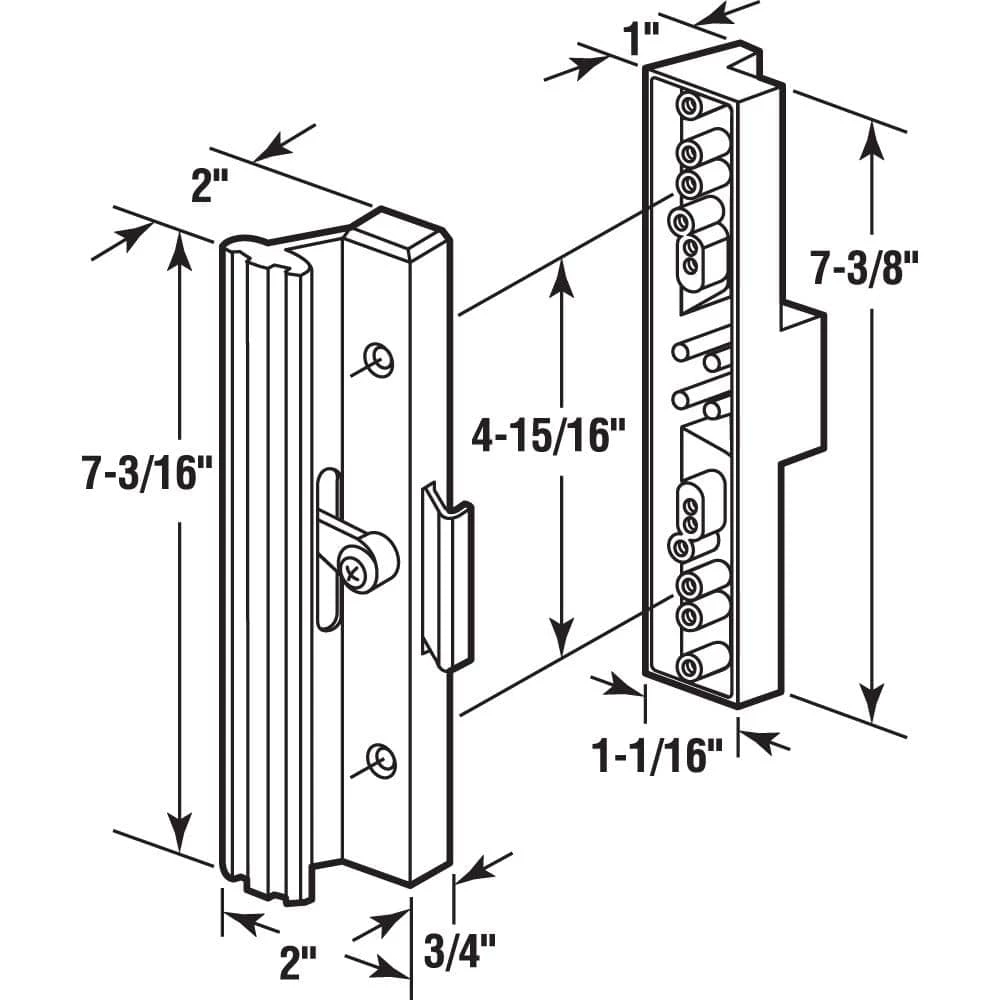

- For further dimensional information, please see the line drawing
