Budget ⌛ Prime-Line 9 in. Diecast Construction Aluminum Painted Finish Left Hand Casement Operator with Square Body ✨
Original price was: $10.46.$6.49Current price is: $6.49.
Features a worm gear driving mechanism and steel arm
Die-cast construction with gray finish offers lasting use
Left hand from the inside looking out
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.

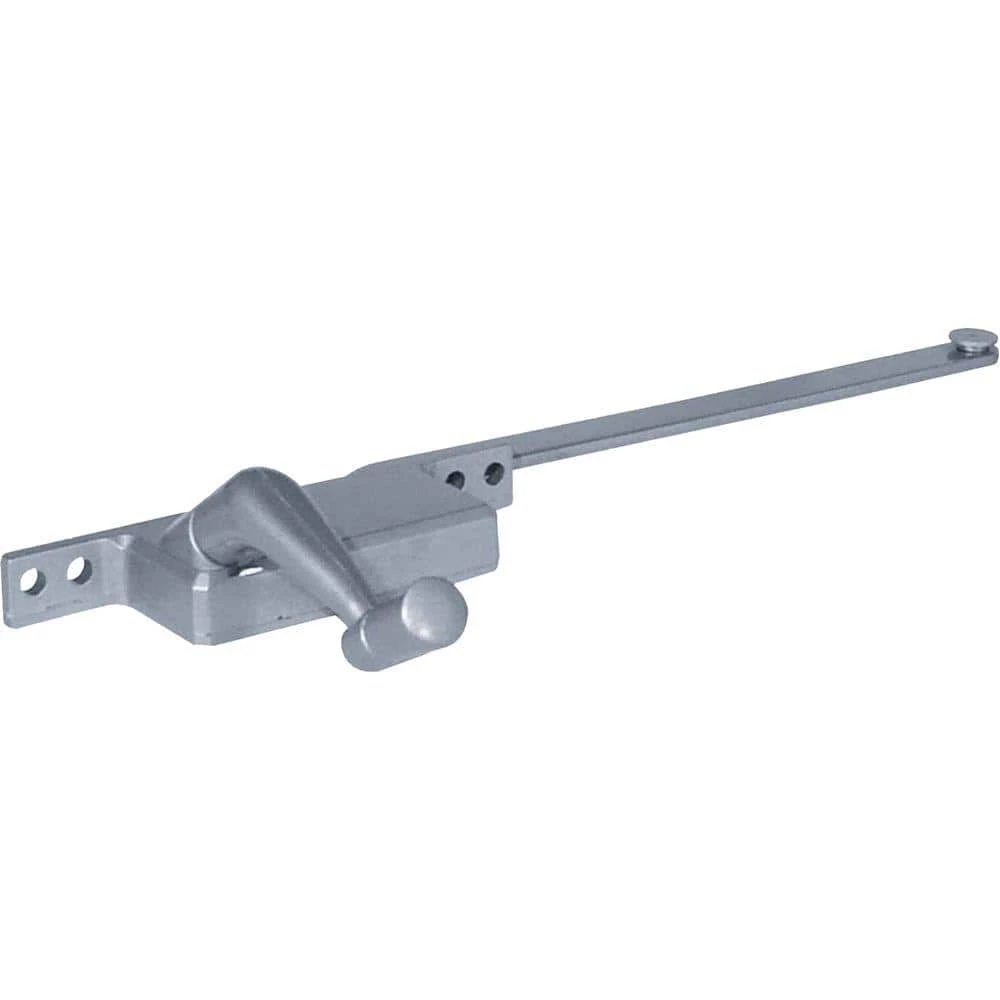

This casement operator is constructed of a diecast housing and crank handle, with a 9 in. steel arm and a hardened steel worm gear mechanism. It features a square body and mounts on the left side of the window, when viewing the window from the inside looking out. This operator is used on older steel-framed casement windows, with a pair of mounting holes spaced at 3-7/8 in. and another at 4-3/4 in. on center. A crank handle and installation fasteners are included with this casement operator.
- Used on old style, steel-framed crank-out casement windows
- This is a left-handed operator. Handing is determined when facing the window from the inside looking out. Like the hinges, this operator will also mount on the left side of the window
- Diecast constructed housing and crank
- Hardened steel constructed arm and drive gears
- Equipped with a diecast crank handle and a 9 in. long hardened steel arm
- Installs with 4 screws. 1 pair spaced apart at 3-7/8 in. on center, and another pair at 4-3/4 in. on center
- Square housing with aluminum painted finish

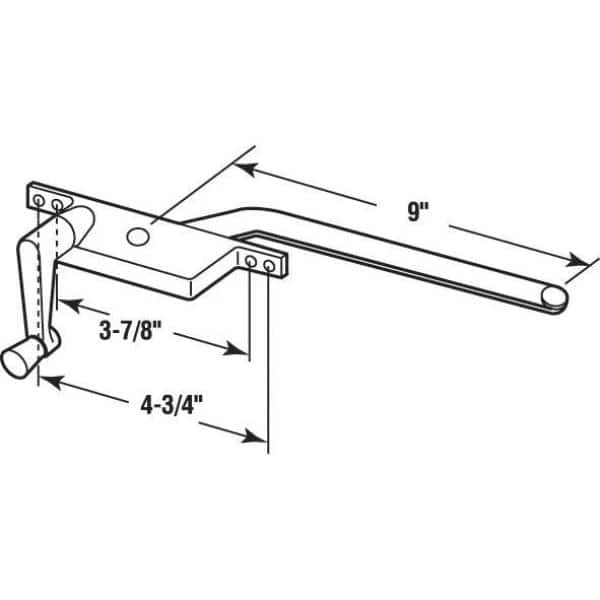

- For further dimensional information, please see the line drawing
| Brand Compatibility | N/A |
|---|---|
| Builders Hardware Product Type | Window Operator |
| Finish | Aluminum |
| Hardware Color Family | Silver |
| Material | Cast Metal |
| Operator type | Single-arm casement |
| Orientation | Vertical / Horizontal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Window Repair Type | Casement Operators |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Arm length (in.) | 9 |
| Product Depth (in.) | 1.375 |
| Product Height (in.) | 13.25 |
| Product Length (in.) | 13.25 in |
| Product Width (in.) | 3.875 |
