Best Sale 🎉 Prime-Line 8 in., Aluminum Diecast, Casement Operator, Left Hand, Square Type 🔔
Original price was: $21.15.$14.81Current price is: $14.81.
Features a worm gear driving mechanism and steel arm
Die-cast construction with gray finish offers lasting use
Left hand from the inside looking out
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.

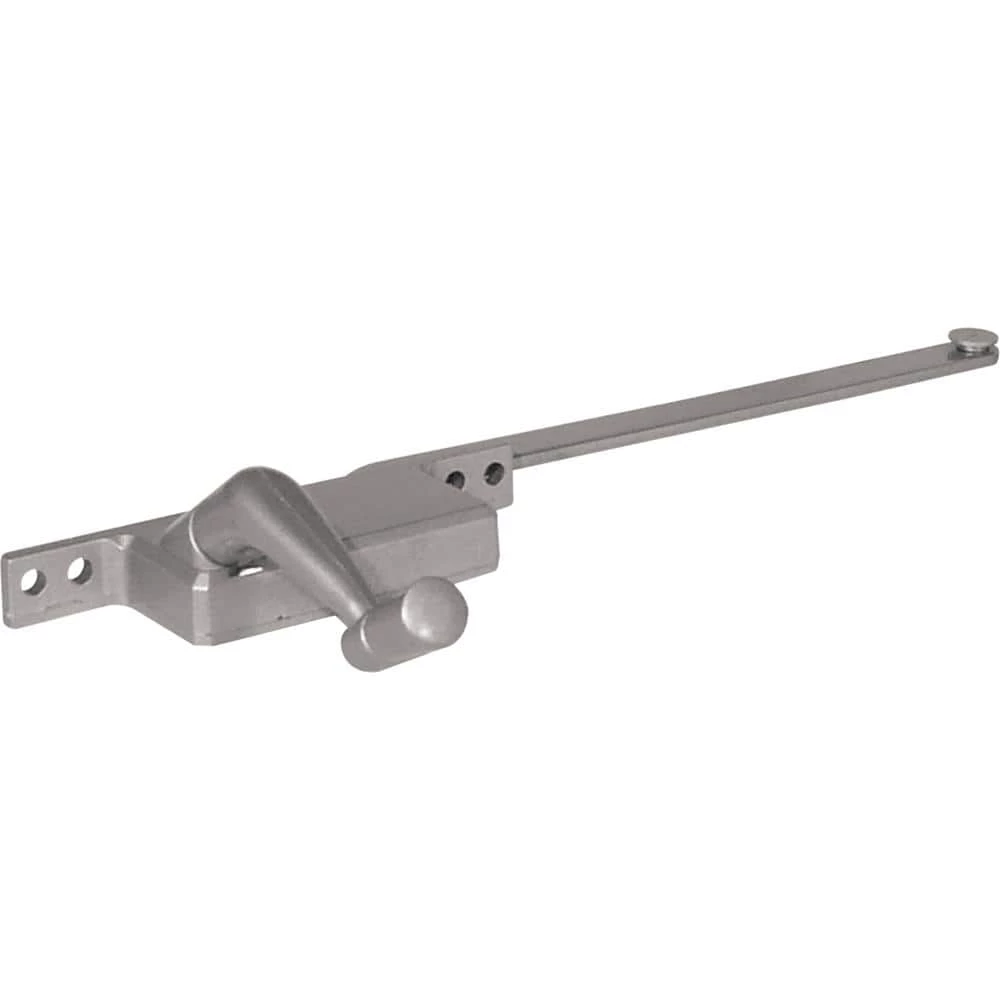

This casement window operator is a left handed aluminum square body type. It has a 8 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. apart.
- Left handed square body crank handle (viewed from inside looking out)
- Mounting holes are 3-7/8 in. and 4-3/4 in. on center
- Arm is 8 in. from middle of the guide button to the middle of the crank operator while closed
- Heavy duty diecast zinc construction with an aluminum finish
- Steel worm drive gear for durability
- Matching crank handle is included
- A Phillips head screwdriver is required for installation

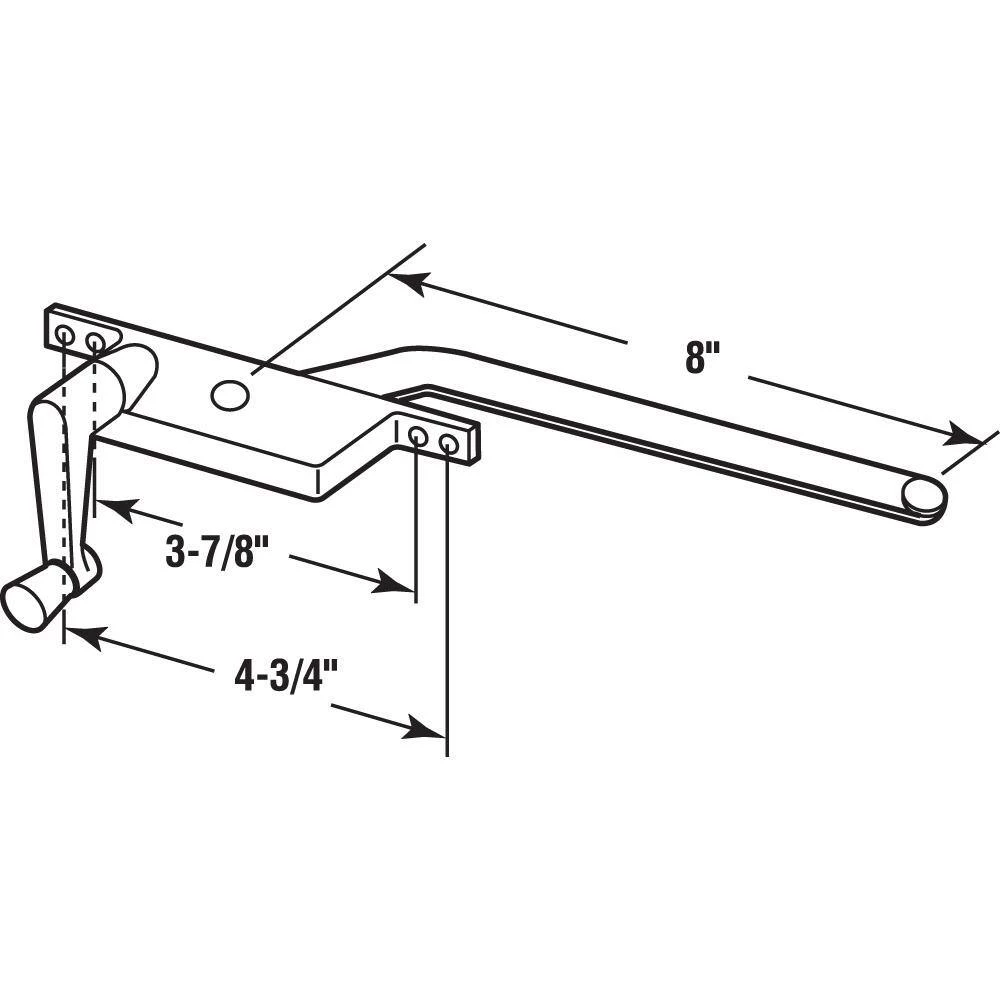

- For further dimensional information, please see the line drawing
| Brand Compatibility | N/A |
|---|---|
| Builders Hardware Product Type | Window Operator |
| Finish | Aluminum |
| Hardware Color Family | Silver |
| Material | Cast Metal |
| Operator type | Single-arm casement |
| Orientation | Vertical / Horizontal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Window Repair Type | Casement Operators |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Arm length (in.) | 8.0 |
| Product Depth (in.) | 1.375 |
| Product Height (in.) | 13.25 |
| Product Length (in.) | 8 |
| Product Width (in.) | 3.875 |
