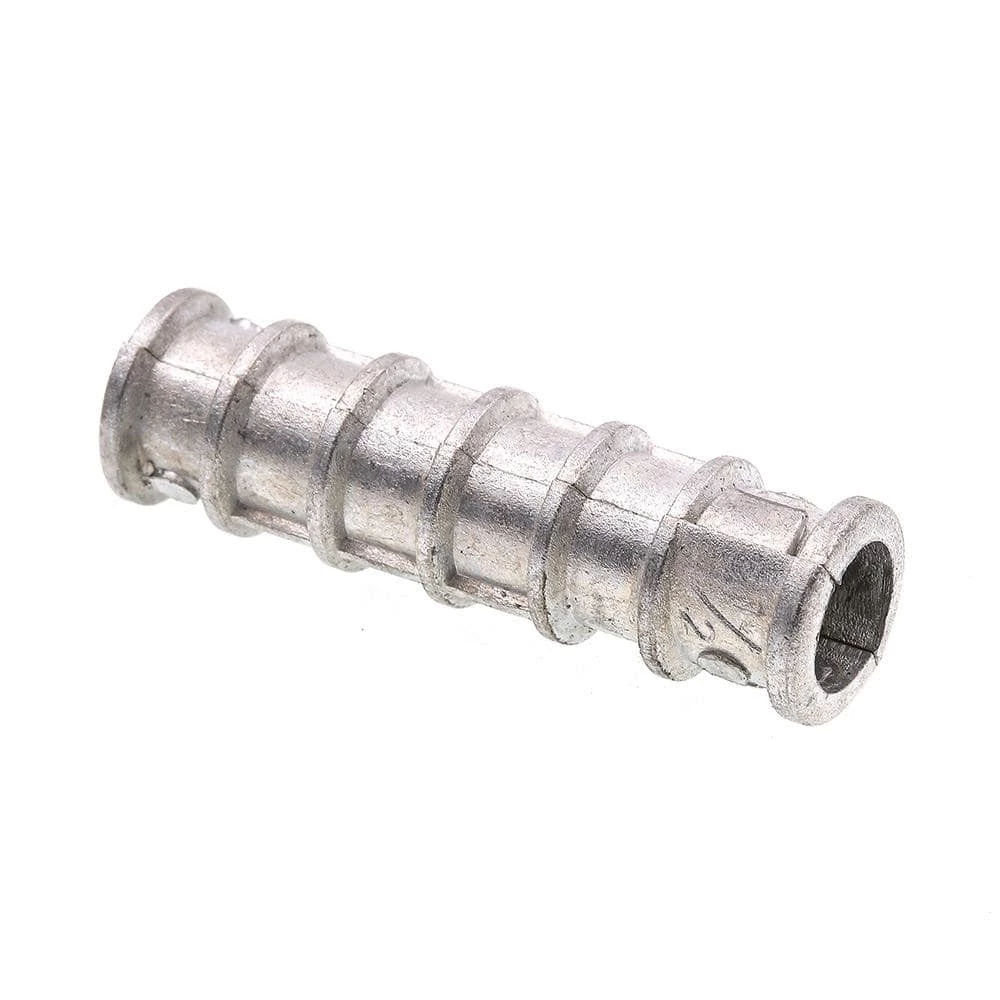

Buy 😀 Prime-Line 5/16 in. x 1-3/4 in. Zinc Alloy Long Lag Shields (20-Pack) ❤️
Original price was: $13.61.$9.66Current price is: $9.66.
For use in predrilled holes
Used for screws in concrete or masonry
Zinc alloy construction for long-lasting use and performance
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.
Lag shield anchors allow lag screws to be installed into concrete and masonry walls. After drilling a hole into the material, lag shields should be tapped into place ribbed side first until flush with the surface. The lag screw can then be installed with a wrench or socket tool. The sides of the lag shield push out against the inside of the hole once the lag screw is installed, thereby locking it in place. The torque guidelines can be affected by the receiver material composition, freeze conditions over time, or sudden impact loads exceeding normal testing parameters.
- Size: 5/16 in. x 1-3/4 in.
- Allows for lag screw bolts to be installed into concrete, brick and block
- Inserts into a hole by tapping with a hammer until flush
- Lag screw expands the lag shield against the walls of the hole
- Drill hole with masonry drill bit based on diameter on anchor
- Guidelines can be affected by the receiver material composition, freeze conditions over time, or sudden impact loads exceeding normal testing parameters
| Color Family | Unfinished |
|---|---|
| Product Weight (lb.) | 0.035 |
| Outside diameter (in.) | 0.3125 |
| Inside Diameter | 0.3125 |
| Anchor Length (in.) | 1.75 |
| Anchor Diameter (in.) | 5/16" |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Weight Capacity (lb.) | 7 |
| Returnable | 90-Day |
| Package Quantity | 20 |
| Fastener Type | Lag Shields |
| Maximum Weight Capacity (lb.) | 7 |
| Interior/Exterior | Exterior |
| Included | No Additional Items Included |
| Finish Family | Zinc |
| Finish | Zinc |
| Features | No Additional Features |
| Fastening Base Material | Brick,Cinder Block,Concrete |
| Fastener/Connector Material | Metal |
| Required Drill Hole Size (in.) | 0.5 |
