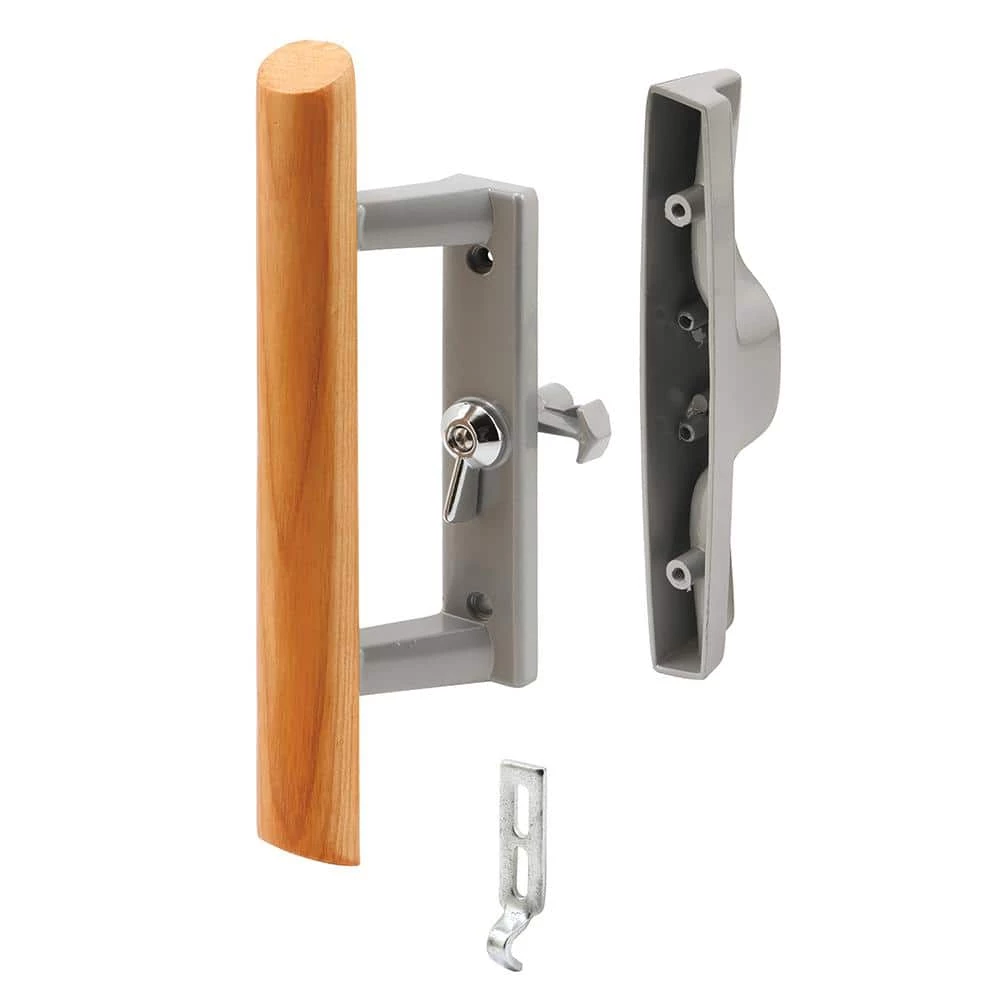

New 💯 Prime-Line 3 in. - 15/16 in. Gray Diecast Sliding Patio Door Handle with Wood Handle for 1 in. Thick Doors 😉

New 💯 Prime-Line 3 in. - 15/16 in. Gray Diecast Sliding Patio Door Handle with Wood Handle for 1 in. Thick Doors 😉 - Image 2

New 💯 Prime-Line 3 in. – 15/16 in. Gray Diecast Sliding Patio Door Handle with Wood Handle for 1 in. Thick Doors 😉

Name: New 💯 Prime-Line 3 in. - 15/16 in. Gray Diecast Sliding Patio Door Handle with Wood Handle for 1 in. Thick Doors 😉 | Hot Sale Prime-Line Shop
SKU: Prime-Line 100142502
Price: 13.56 USD
Availability: InStock

Original price was: $19.94.Current price is: $13.56.

Designed for left or right handed doors
Suitable for 7/8 in. to 2-3/8 in. thick doors
Durable diecast construction ensures long term use

SKU: Prime-Line 100142502 Categories: Door Hardware, Sliding Door Hardware, Sliding Door Locks Tags: 90-Day, Gray, No Additional Features, Prime-Line, Yes

Fast, friendly, always here to help.
Shop with confidence, we guarantee quality.
Unbeatable quality, unbeatable prices.
Quality products for every lifestyle.

This handle is a gray Internal style latching patio door handle found on Viking as well as a variety of other sliding patio door manufacturers. Being one of the most common internal style latch it can be used on either right or left handed doors. The handle body is diecast steel with a wood handle attached. The wood finish may vary slightly. Included is a matching outside handle and keeper. The mounting holes are 3-15/16 in. on center. When the latch is installed into the door frame through an inside access hole, the connected lever is held in place by a flat spring as it operates the latch up and down to engage the keeper.

Found on a majority of Viking sliding patio doors
3-15/16 in. on center mounting holes
Non-handed handle design for left or right handed doors
Diecast construction painted gray with wood handle (wood finish can vary)
Contains one slide bolt, and two different keepers
All the necessary mounting hardware is included for a quick and easy installation
A Phillips head screwdriver is required for installation

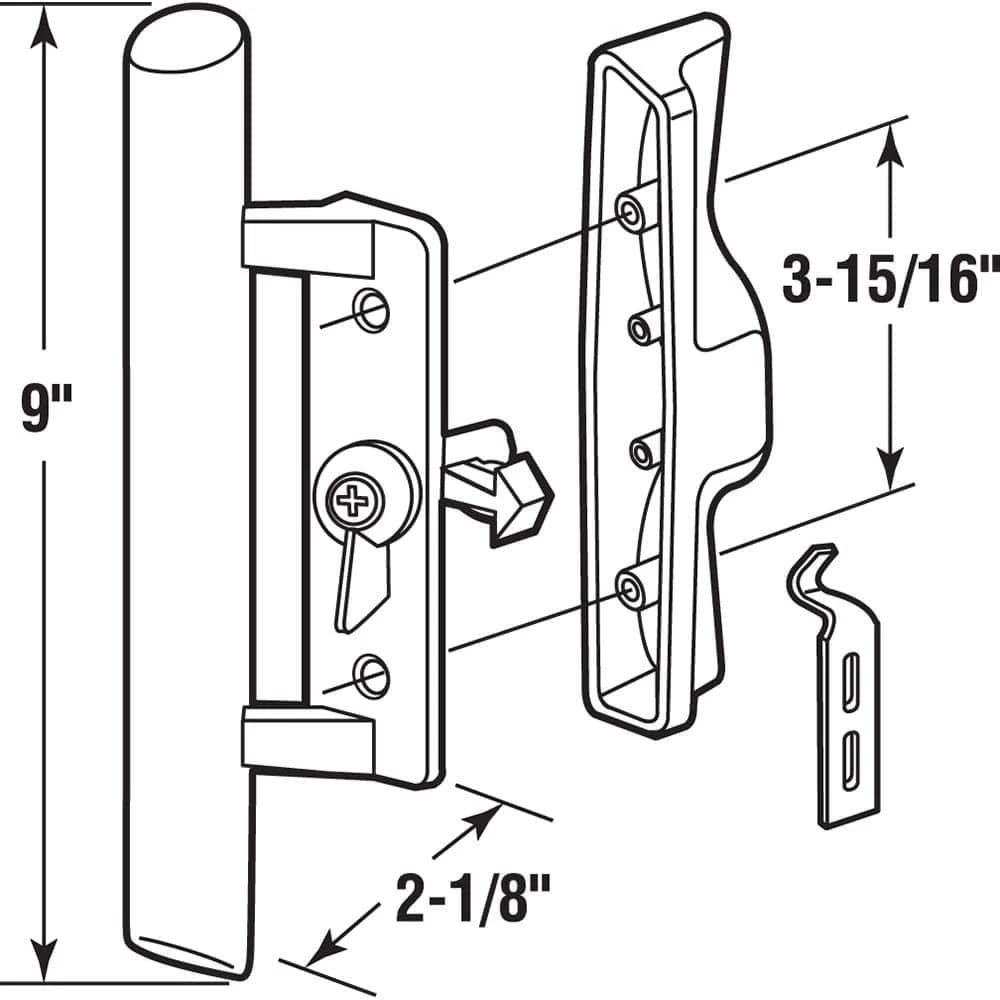

For further dimensional information, please see the line drawing

Commercial/Residential	Residential
Returnable	90-Day
Product Height (in.)	11.5 in
Product Depth (in.)	2.125 in
Minimum Door Thickness (in.)	1 in
Maximum Door Thickness (in.)	1 in
Grip Width (in.)	1 in
Grip Height (in.)	9 in
Manufacturer Warranty	Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Certifications and Listings	No Certifications or Listings
Sliding Door Hardware Product Type	Sliding Door Handle
Security/ANSI Grade	N/A
Product Weight (lb.)	0.955 lb
Door Handing	Universal
Material	Metal
Interior/Exterior	Exterior,Interior
Included	Mounting Hardware
Hardware Included	Yes
Hardware Color Family	Gray
Handle Material	Wood
Finish	Gray
Features	No Additional Features
Door Locks & Knobs Product Type	Door Handles & Pulls
Door Lock Style	Classic
Product Width (in.)	5 in
