Wholesale ✨ Prime-Line 3/8 in. Bi-Fold Door Top/ Bottom Pivot and Guide Set 😉
Original price was: $5.37.$3.22Current price is: $3.22.
Compatible with 3/8 in. diameter hole and 7/8 in. W track systems
Includes top and bottom pivots
Commonly used on louvered wooden doors
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.
These drawer slide kits are constructed of steel tracks with plastic rollers and come in a white powder-coated finish. They feature a self-closing design that commences at the final 2-1/2 in. from the end of the 19-3/4 in. long tracks when closing. The maximum load capacity for this kit is 75 lbs., and it fits most bottom-mount drawer systems. This kit cannot be cut down to fit smaller drawer depths as it is designed with a positive stop at the ends of the fixed tracks, and because the rear rollers (11/16 in. Dia wheels) on the sliding tracks are fastened to the ends of the drawer-mounted track pieces. These bottom-mount drawer slides can be installed in drawer cabinets with face frames and without. If installing in drawer cabinet with face frame, Prime-Line’s model number R-7240 (purchased separately) may be necessary if existing back plates are damaged. The clearance required between the drawer and the drawer opening for these types of slides is as follows: 1/2 in. on left and right sides, 1/4 in. at the bottom and 5/8 in. at the top. Installation instructions are included with each set, and they can also be found within the manufacturer’s website.
- Used by a variety of bi-fold door manufacturers

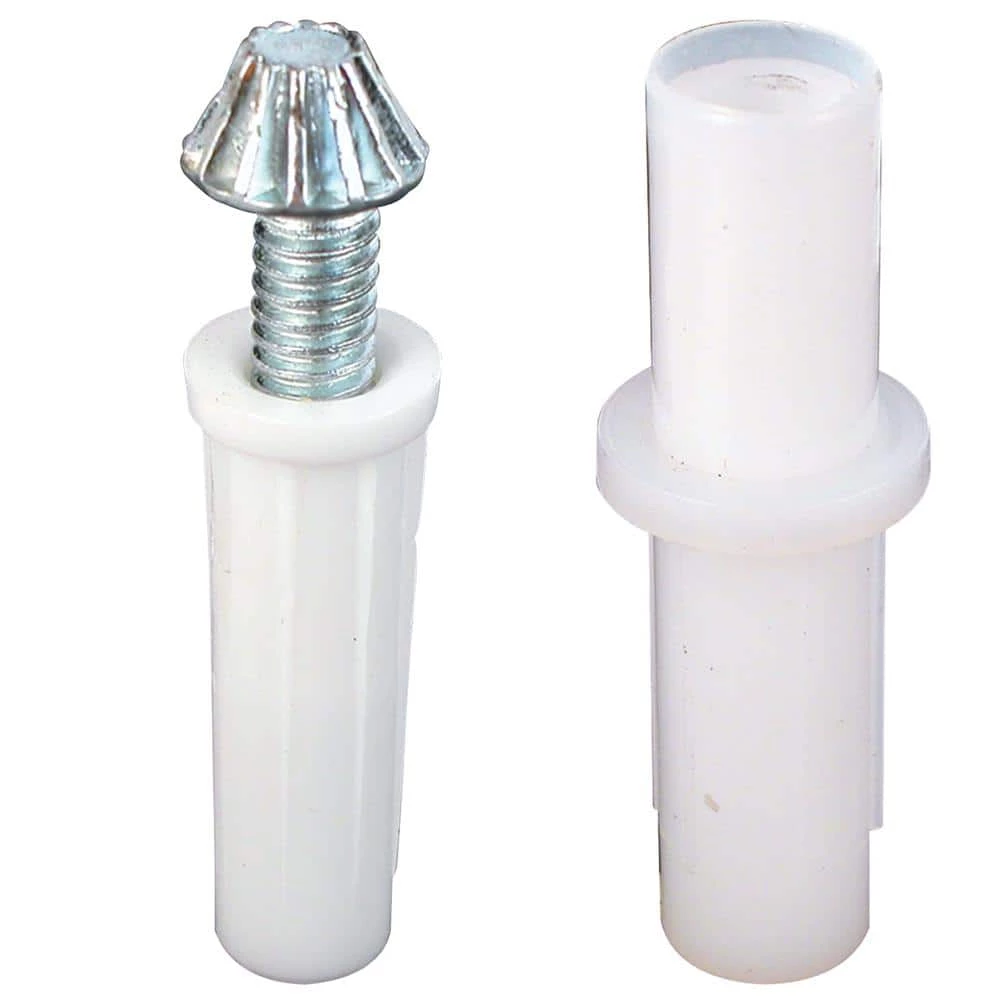

- Tapered and grooved tip on the bottom pivot pin
- 3/8 in. outer diameter housings
- Steel screw and white plastic housing
- Push-in installation
- Easy to install
- A soft mallet may be required for installation

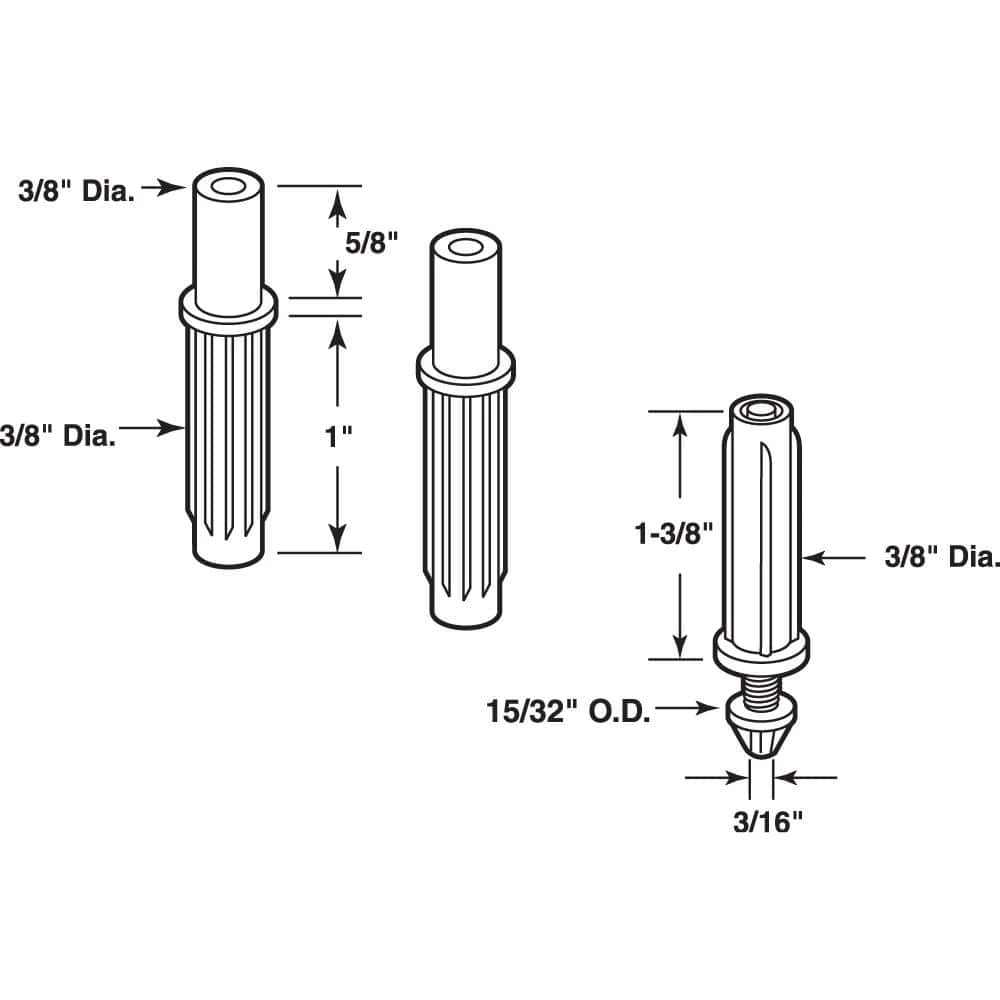

- For further dimensional information, please see the line drawing
| Builders Hardware Product Type | Closet Door Hanging/Mounting Kit |
|---|---|
| Finish | White |
| Hardware Color Family | White |
| Hardware Finish Family | White |
| Material | Plastic |
| Returnable | 30-Day |
| Manufacturer Warranty | Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Product Depth (in.) | 0.625 |
| Product Height (in.) | 5.438 |
| Product Width (in.) | 3.813 |
