Top 10 ✔️ Prime-Line 10 3/4 in., Diecast, Left Hand Casement Dual Arm Operator with Stud Bracket 🧨
Original price was: $44.68.$33.51Current price is: $33.51.
Features a worm gear driving mechanism and steel arm
Die-cast construction with coppertone finish offers lasting use
A simple detach feature allows for quick window removal
- Fast, friendly, always here to help.
- Shop with confidence, we guarantee quality.
- Unbeatable quality, unbeatable prices.
- Quality products for every lifestyle.

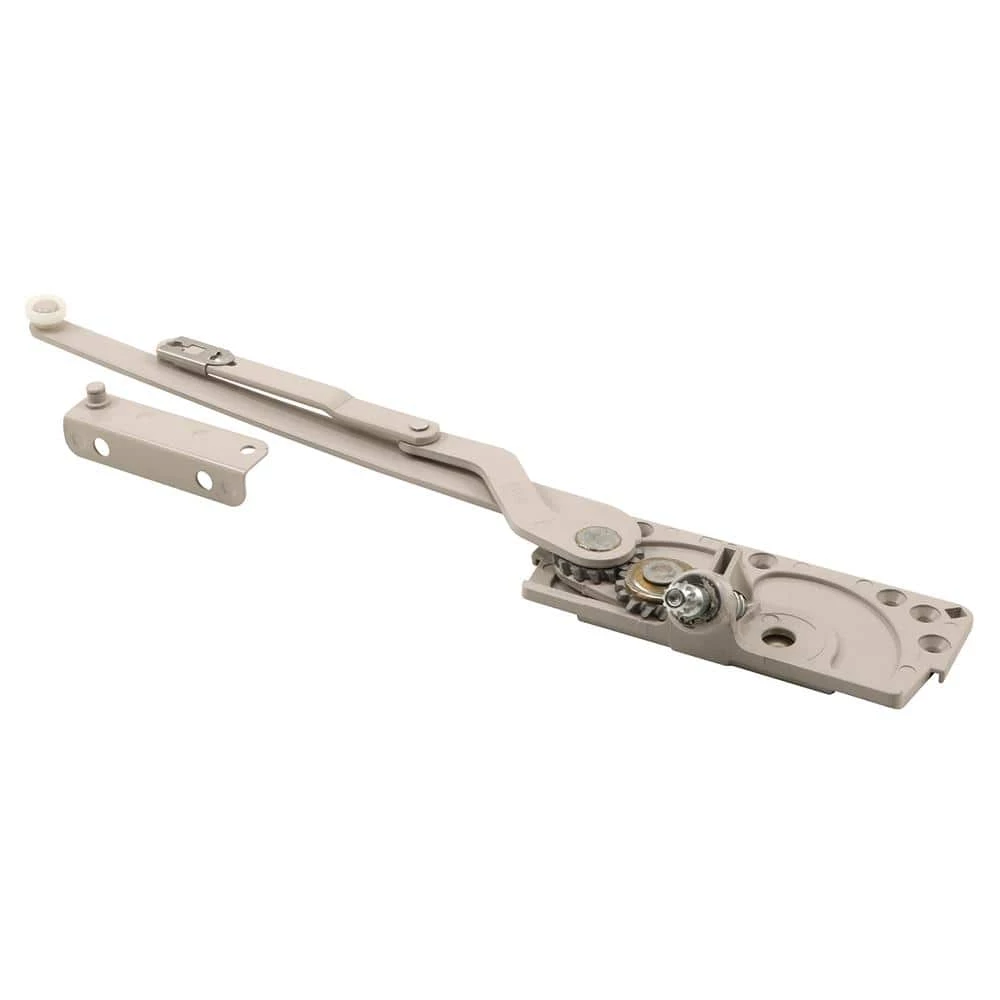

This is a 10 3/4 in. left handed dual arm operator with a 4 1/16 in. offset link arm. The long, continuous arm and jointed arm create an action that pushes the sash open while pulling the hinge side of the sash to the open position. It is made of heavy duty diecast zinc and protected with the corrosive resistant E-Gard coating process. This is the arm operator only, the operator base and crank handle are not included.
- Heavy duty diecast Zinc construction
- Corrosive resistant E-Gard process
- Left hand (as viewed from the outside)
- Patented dual arm action pushes the sash open while pulling the hinge side of sash to the open position
- Stud bracket included
- Fasteners included
- A Phillips head screwdriver is required for installation

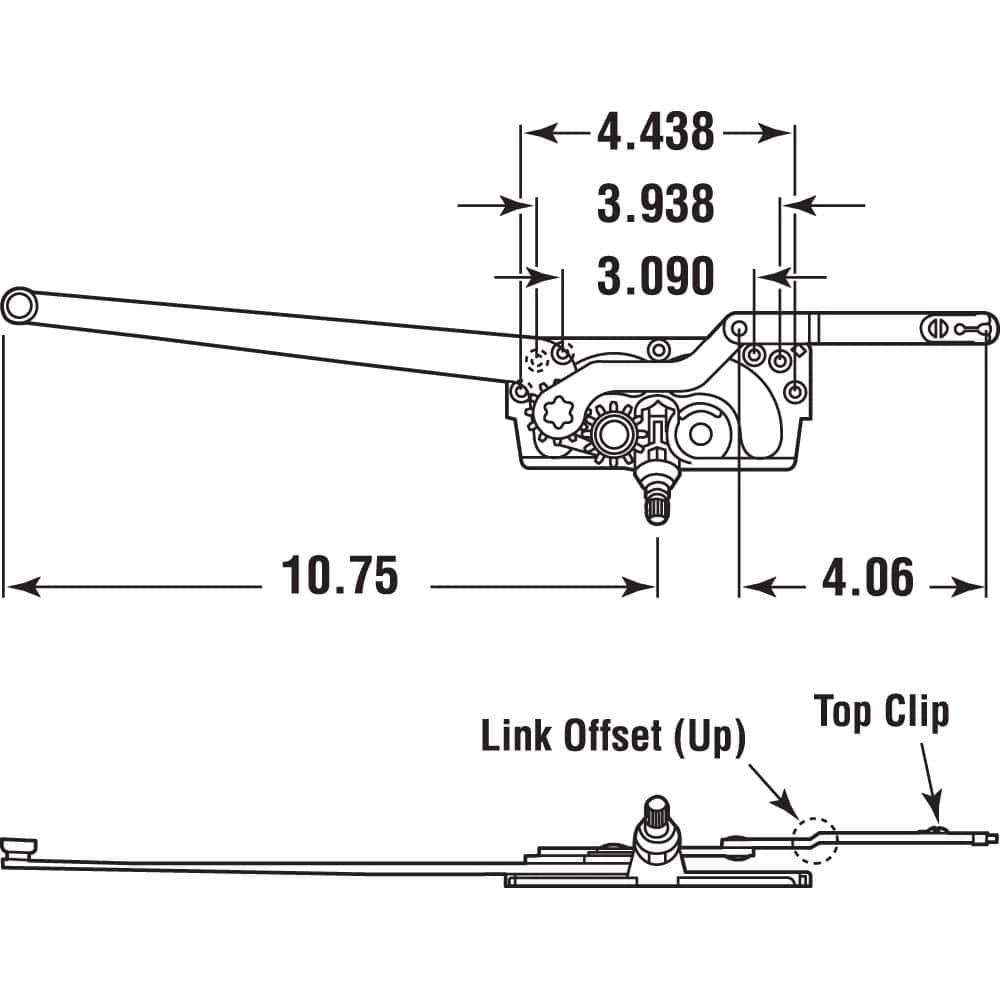

- For further dimensional information, please see the line drawing
| Brand Compatibility | N/A |
|---|---|
| Builders Hardware Product Type | Window Operator |
| Finish | Tan |
| Hardware Color Family | Silver |
| Material | Metal |
| Operator type | Dual-arm casement |
| Orientation | Vertical / Horizontal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Window Repair Type | Casement Operators |
| Manufacturer Warranty | Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Arm length (in.) | 10.75 |
| Product Depth (in.) | 1.5 |
| Product Height (in.) | 19.25 |
| Product Length (in.) | 19.25 in |
| Product Width (in.) | 4.75 in |
