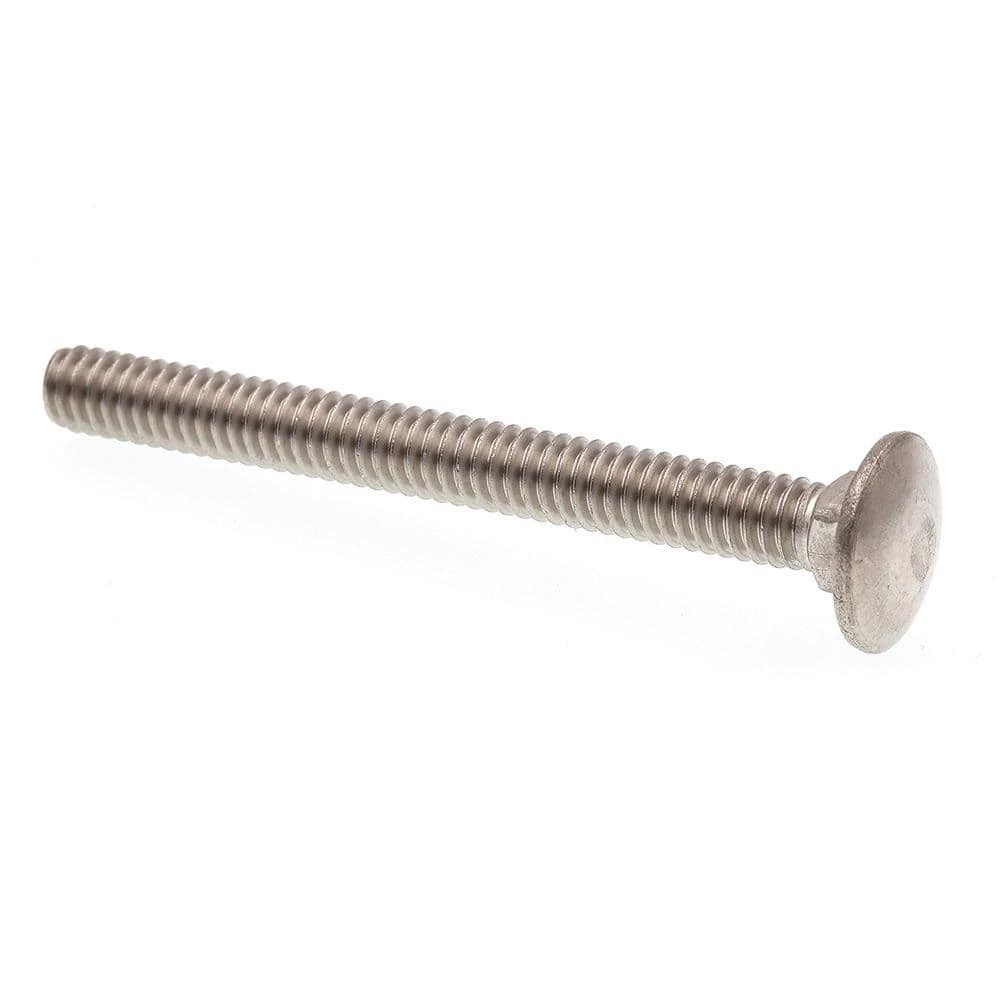

Hot Sale 😍 Prime-Line 1/4 in.-20 x 2-1/2 in. Grade 18-8 Stainless Steel Carriage Bolts (25-Pack) 😀

Original price was: $21.21.Current price is: $13.79.

SKU: Prime-Line 310499874 Categories: Bolts, Carriage Bolts, Fasteners Tags: 0.04 lb, 1/4 in, Carriage Bolt, Coarse, Prime-Line

Fast, friendly, always here to help.
Shop with confidence, we guarantee quality.
Unbeatable quality, unbeatable prices.
Quality products for every lifestyle.

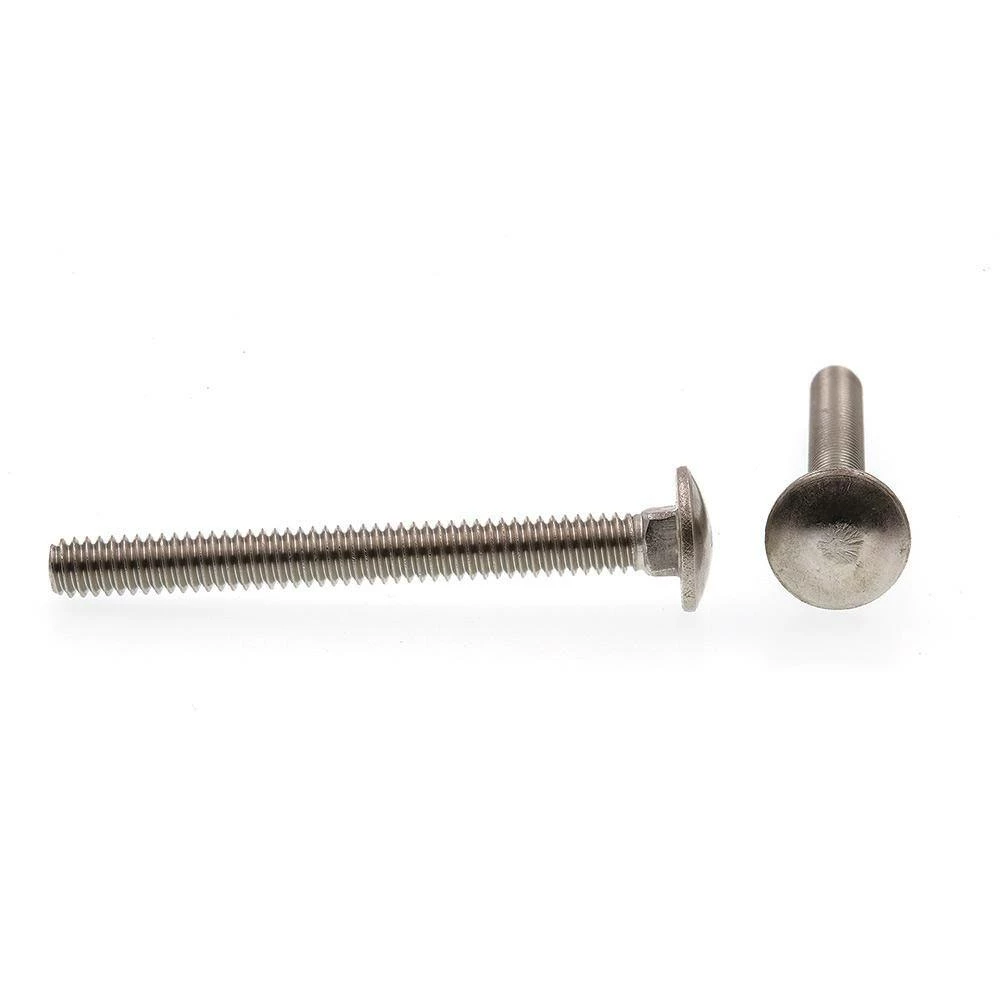

Carriage bolts feature a slightly rounded head and have no exposed sharp edges when fully fastened. Due to that reason, they are often used when a more aesthetic look is desired. They are commonly used on docks and on playground equipment or in cases where it may be difficult to reach the bolt head with a tool. The square shoulder on carriage bolts help to hold it in place while the nut is fastened.

Size: 1/4 in.-20 x 2-1/2 in.
Features a smooth rounded head as opposed to a standard hex head
Square shoulder allows for nut to be tightened or loosened
Often used in cases where a protruding bolt head could cause injury
Nuts and washers not included, ensure washers and nuts are same diameter
Thread type: coarse, thread class: UNc-2A, point style: blunt
Specification(s) met: ASME B18.5 and ASTM F593/1

ACQ Rated Fastener	No
Product Weight (lb.)	0.04 lb
Fastener Length (in.)	2.55
Assembled Width (in.)	0.35 in
Assembled Height (in.)	0.5 in
Assembled Depth (in.)	2-1/2 in
Manufacturer Warranty	Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Size	1/4 in
Returnable	90-Day
Package Quantity	25
Fastener Length	2-1/2 in
Measurement Standard	SAE
Material	Steel
Grade	Not Graded
Finish Family	Stainless Steel
Fastener Type	Carriage Bolt
Fastener Thread Type	Coarse
Fastener Plating	Stainless Steel
Head diameter (in.)	0.504
