This drawer and cabinet lock is constructed of die-cast and steel components and it comes in a classic bronze finish. This lock feature a 3/4 in. outside cylinder diameter with a 1-1/8 in. length that will accommodate up to 13/16 in. thick panels. This drawer and cabinet lock can be mounted to metal or wood: doors and/or drawer panels, and it comes complete with 3 cams, a trim collar, 2 reversible rotation washers, 2 keys and fasteners. This model number is keyed different and it uses Yale Y-11 keyway.
- Used on doors and drawers that are 13/16 in. thick
- Allows you to secure drawer or cabinet
- Durable diecast and steel construction with a bronze finish
- All hardware included for installation

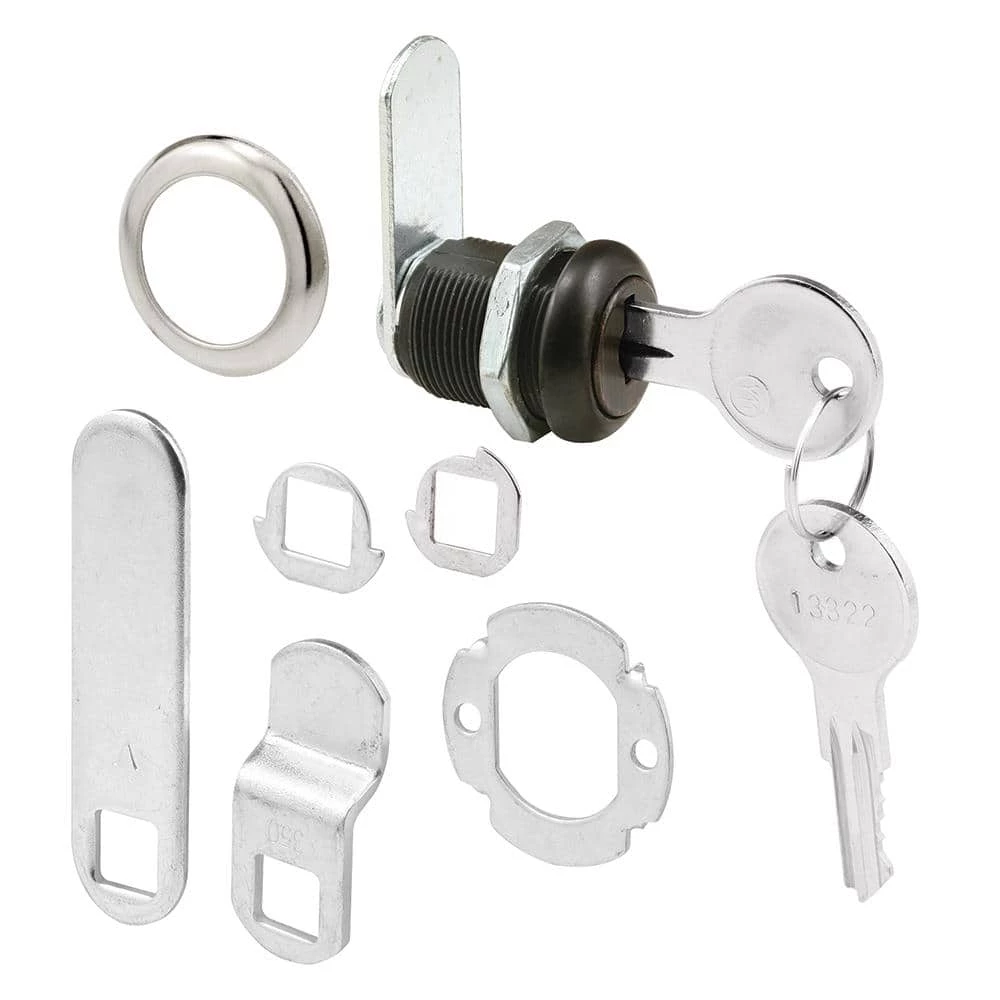

- Contains 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut and 2 keys
- Body of this lock is 1-1/8 in. diameter with a face of 7/8 in. diameter

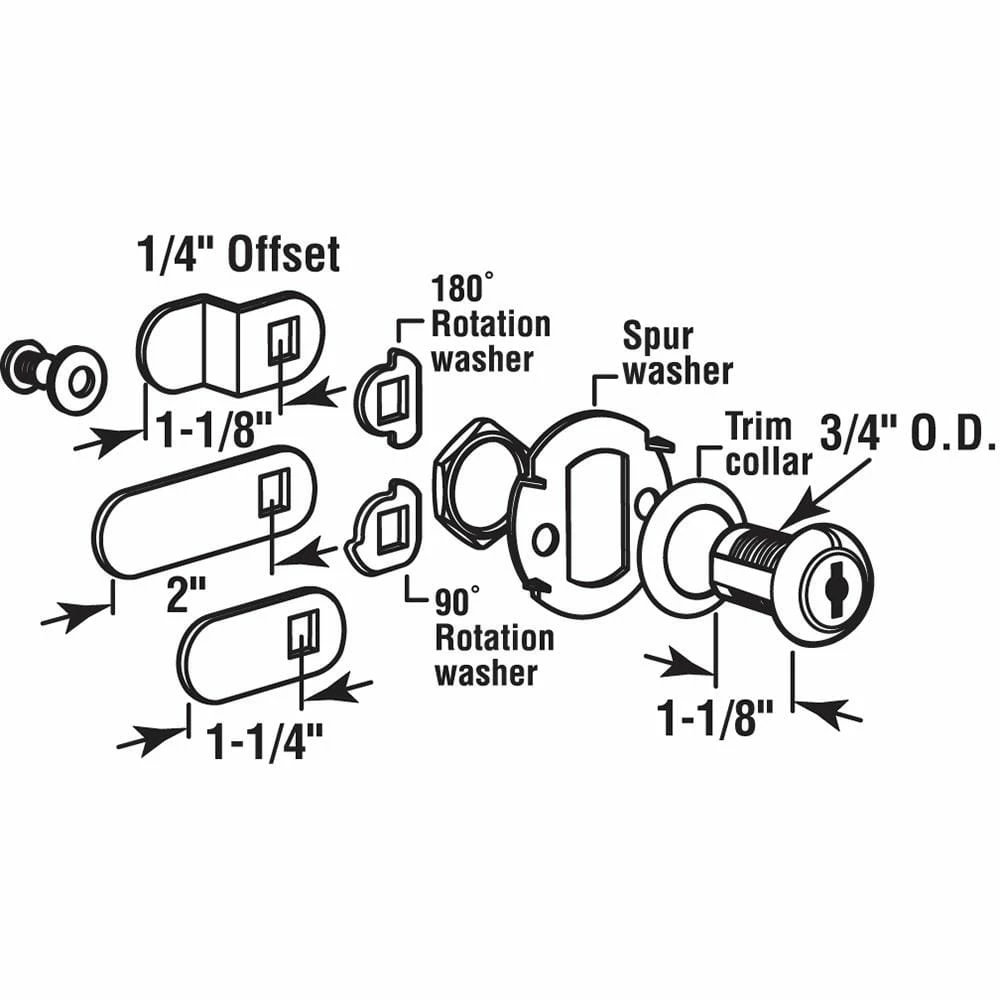

- For further dimensional information, please see the line drawing
